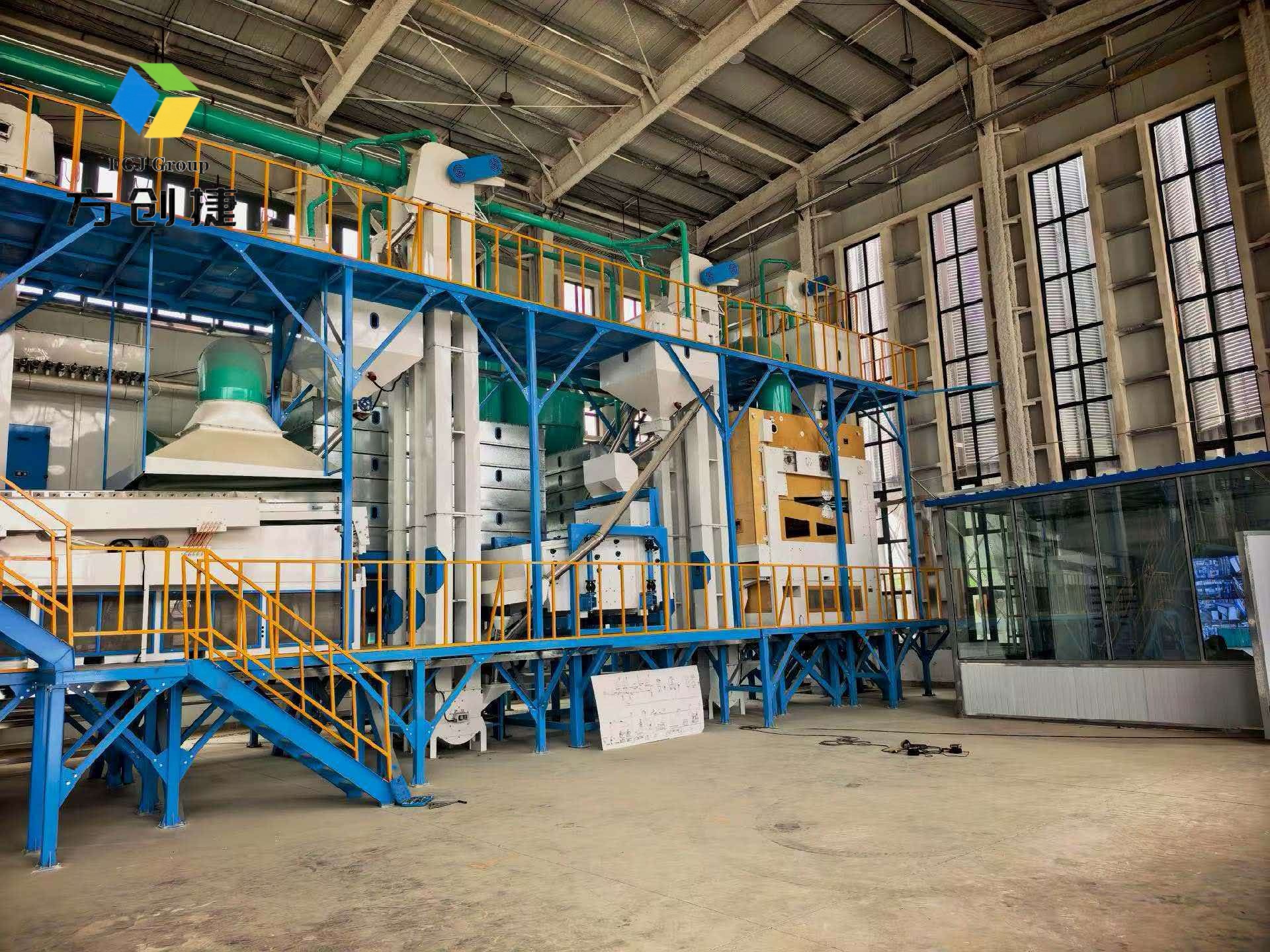

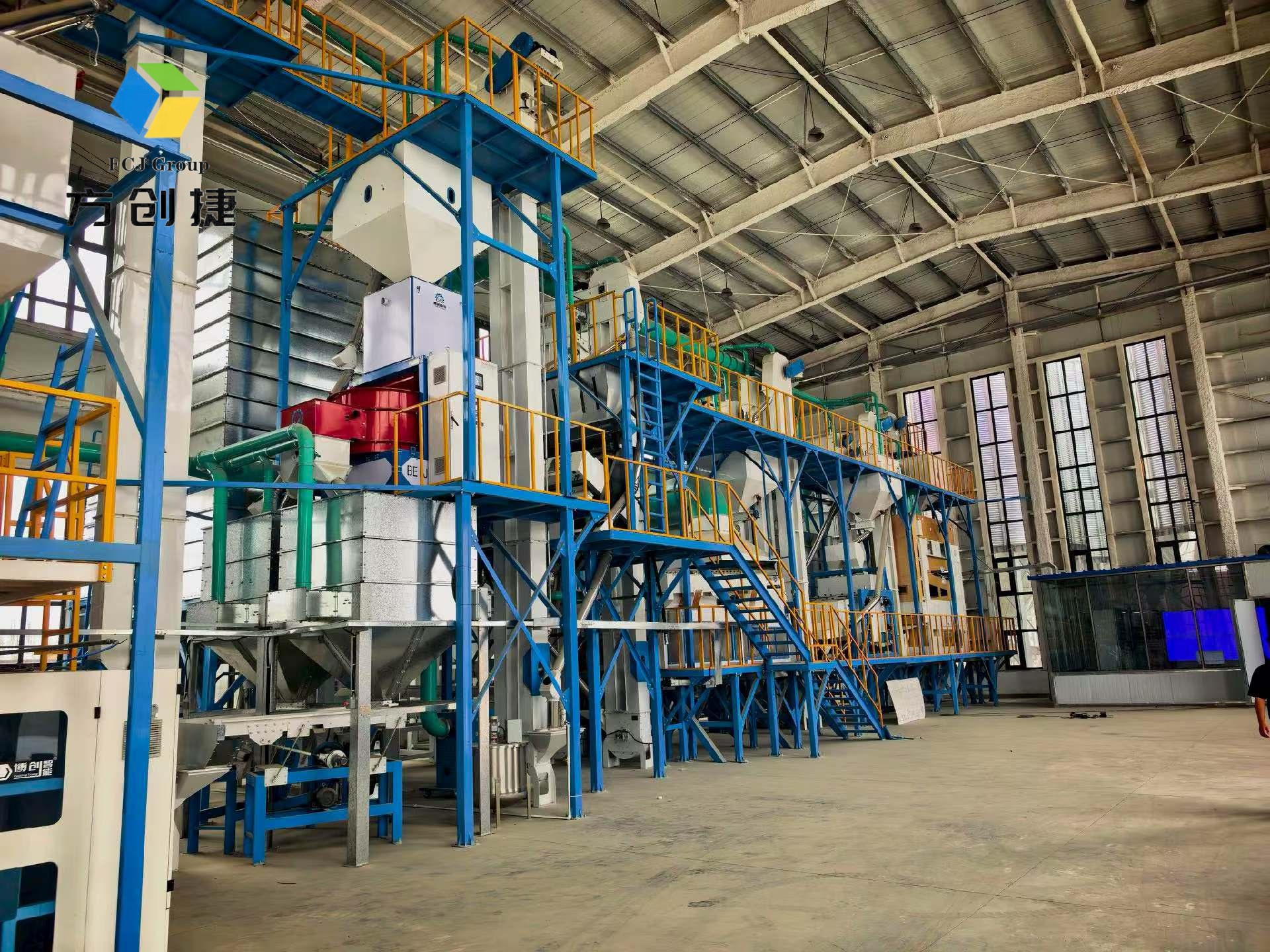

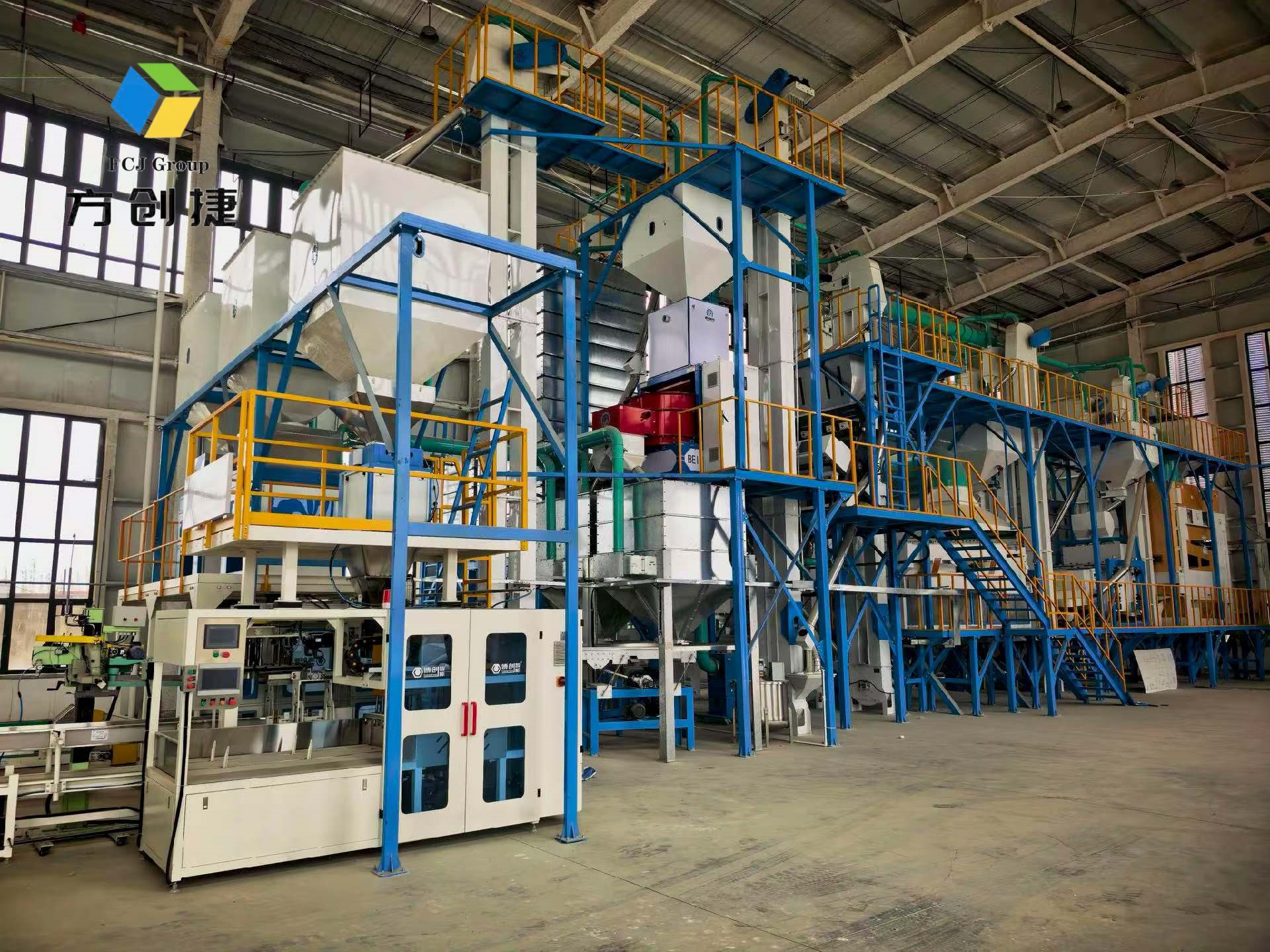

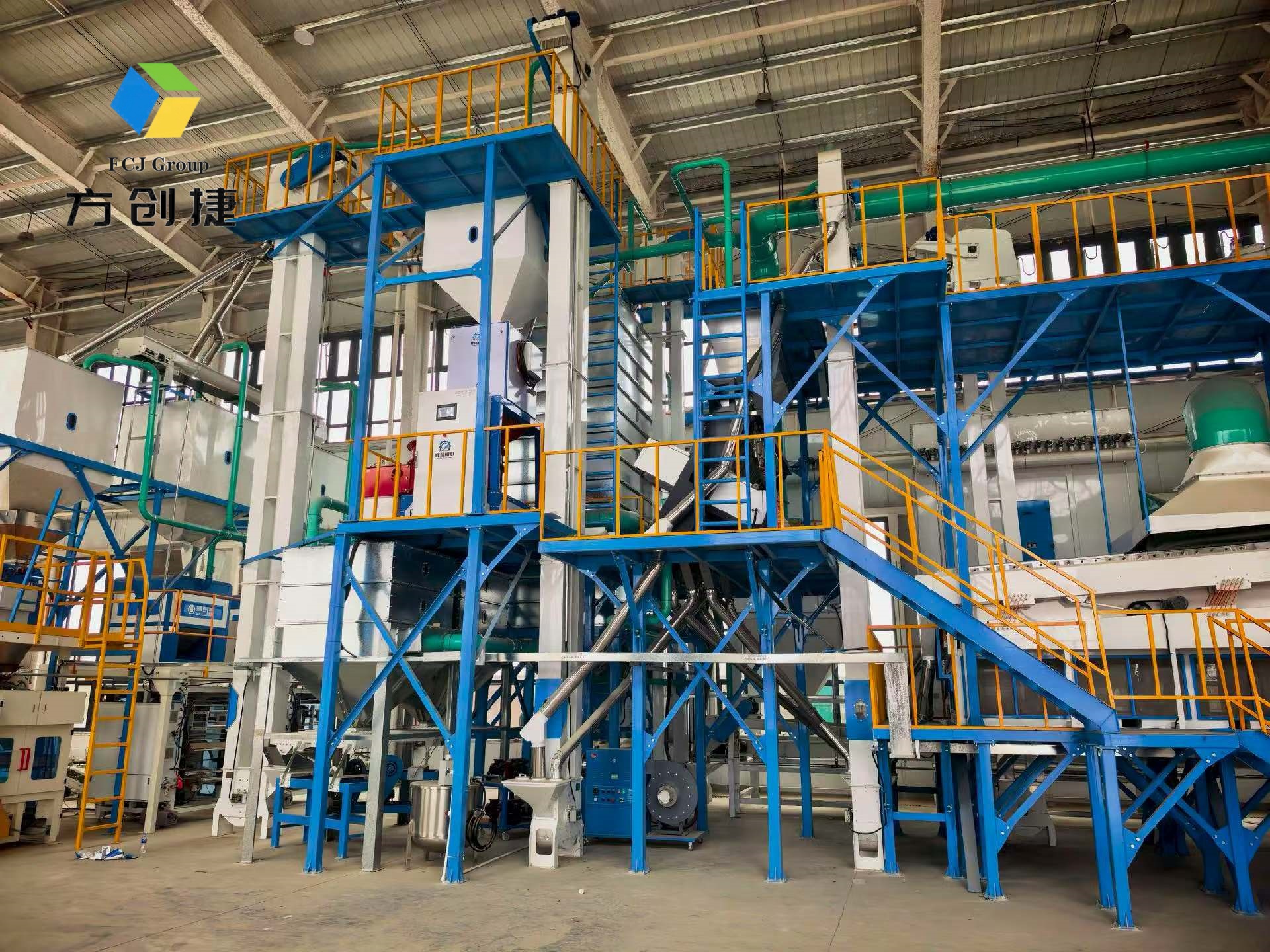

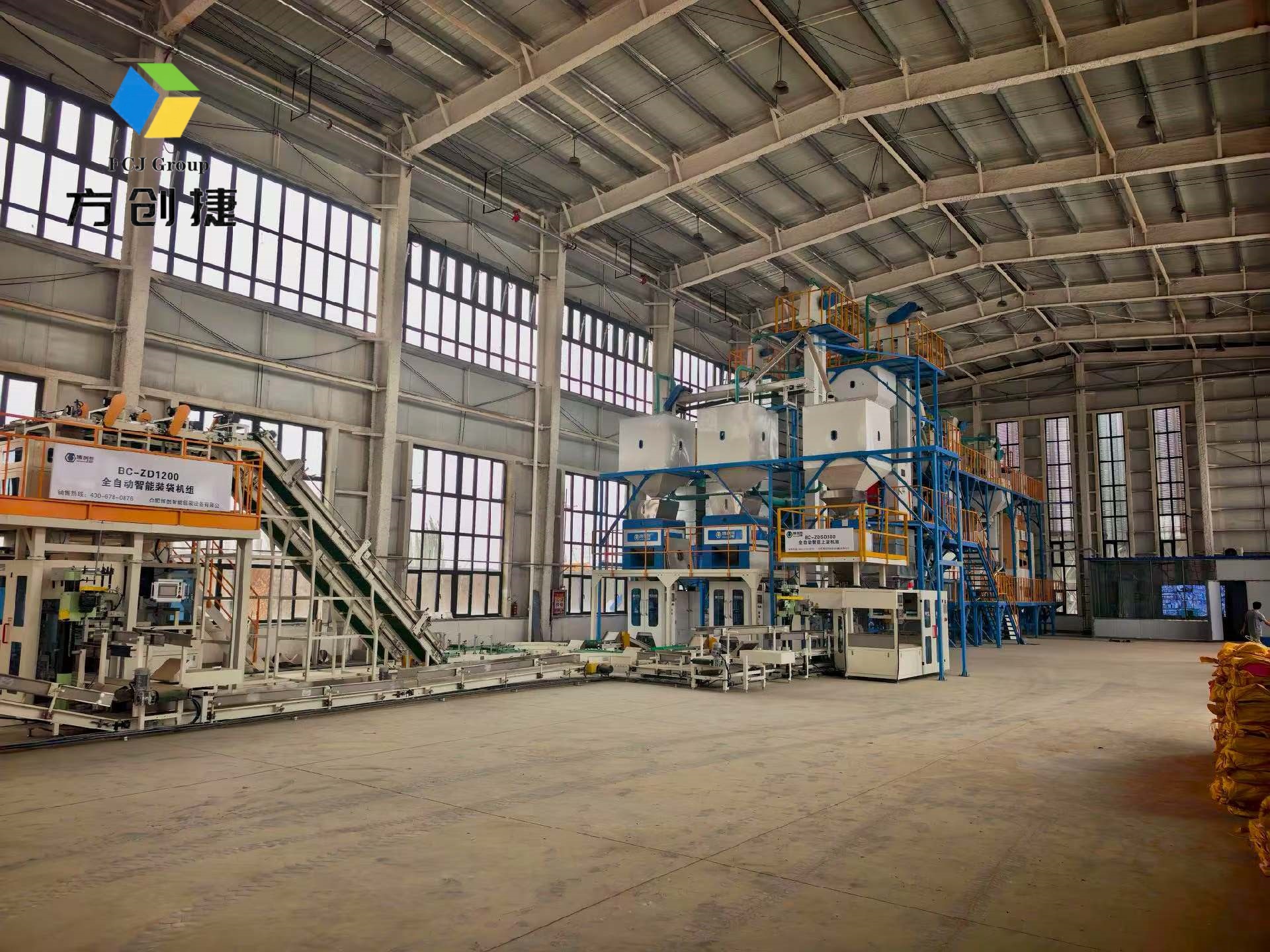

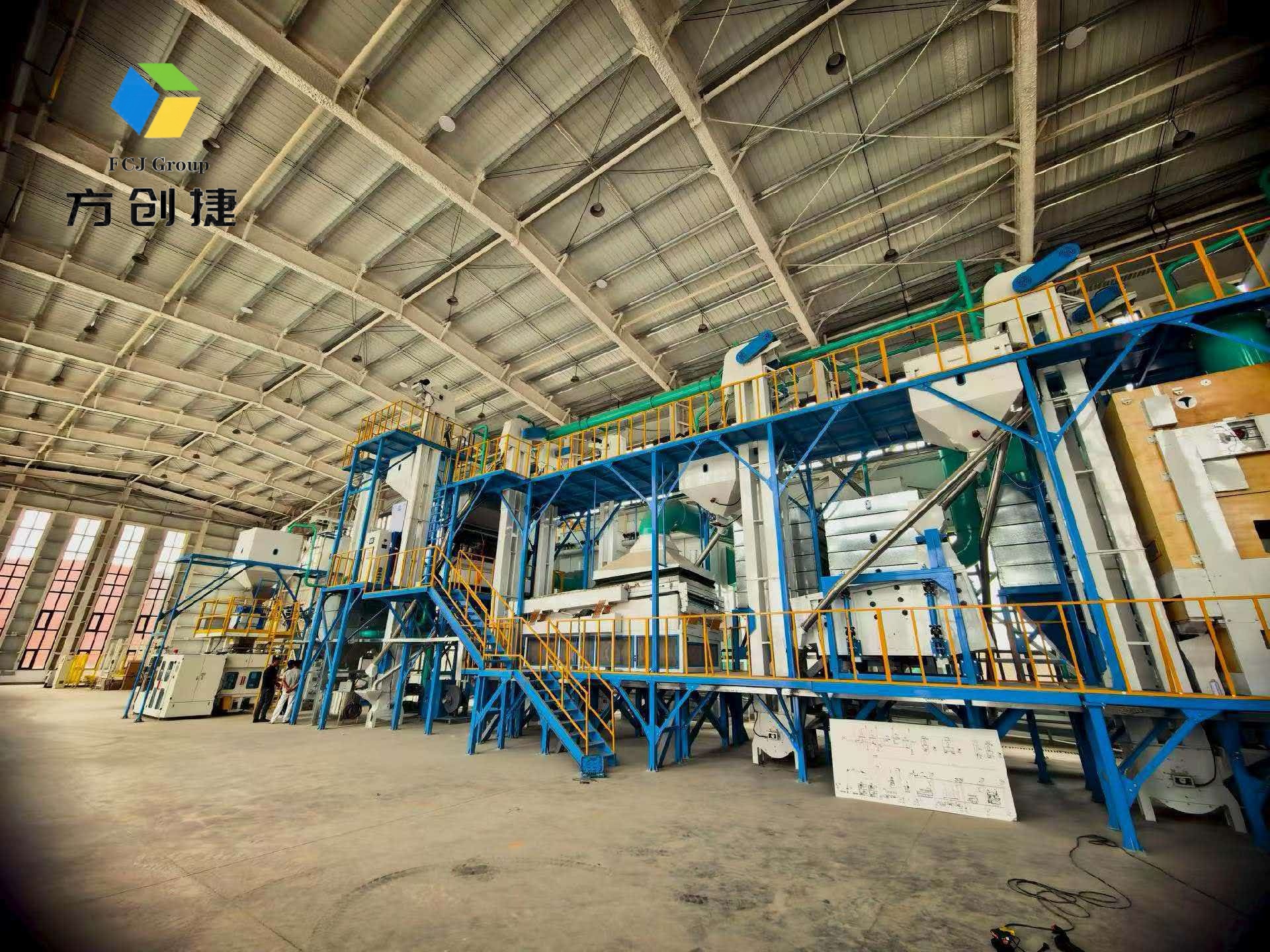

15T/H Seed Processing Production Line

15T/H seed processing production line is a complete solution designed for cleaning, grading and improving the quality of various seeds and grains.

The production line integrates multiple processing units, including pre-cleaning, screening, air separation, destoning, magnetic separation, gravity separation and color sorting systems. Through multi-stage cleaning and sorting processes, it can efficiently remove impurities, dust, stones, light materials and unqualified seeds.

With a capacity of 15 tons per hour, the system is suitable for medium and large-scale seed processing plants, agricultural enterprises and grain processing projects. The production line adopts modular design, stable operation and high automation, providing customers with an efficient and reliable seed processing solution.

Processing Flow

1. Raw Material Receiving

The raw seeds enter the production line through feeding equipment and are transported to the cleaning system.

Remove:

• Large impurities
• Straw
• Leaves
• Foreign materials

2. Pre Cleaning

The rotary pre cleaner removes large and small impurities through screening.

Main equipment:

Rotary Pre Cleaner

3. Vibrating Cleaning

The vibration cleaner further separates impurities according to particle size.

Remove:

• Broken seeds
• Dust
• Small impurities

4. Air Separation

The air screen cleaner separates light impurities through airflow.

Remove:

• Empty shells
• Light particles
• Dust

5. Destoning

The destoner separates stones and heavy impurities according to density difference.

6. Gravity Separation

The gravity separator improves seed quality by separating:

• Full seeds
• Empty seeds
• Immature seeds

7. Color Sorting (Optional)

The color sorter automatically removes:

• Discolored seeds
• Moldy seeds
• Defective seeds

8. Packaging & Storage

The finished seeds are collected, packed and prepared for storage or transportation.

Main Equipment

• Feeding System
• Bucket Elevator
• Rotary Pre Cleaner
• Vibration Cleaner
• Air Screen Cleaner
• Destoner
• Magnetic Separator
• Gravity Separator
• Color Sorter
• Conveyor System
• Dust Collection System

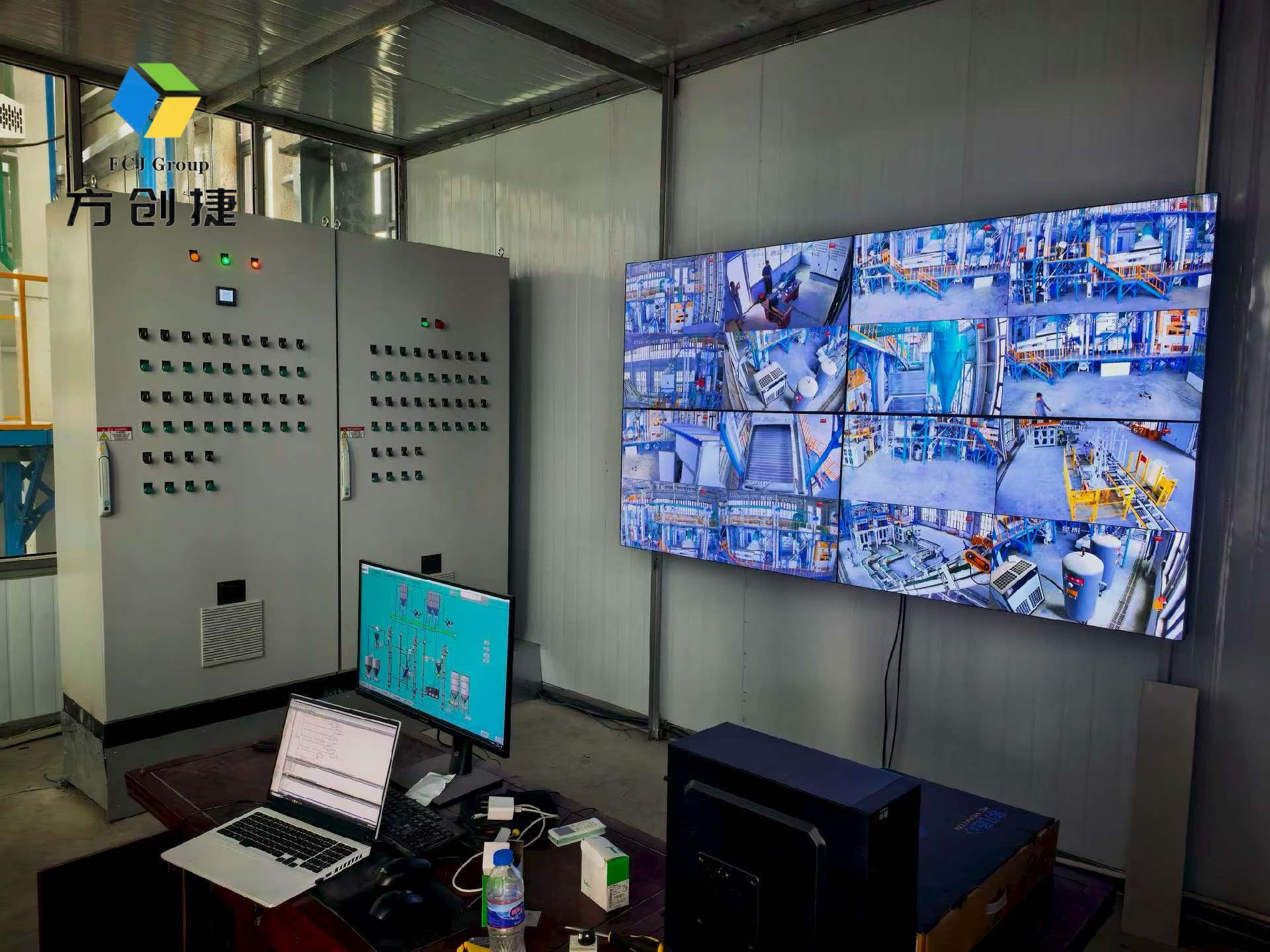

• Electrical Control System
